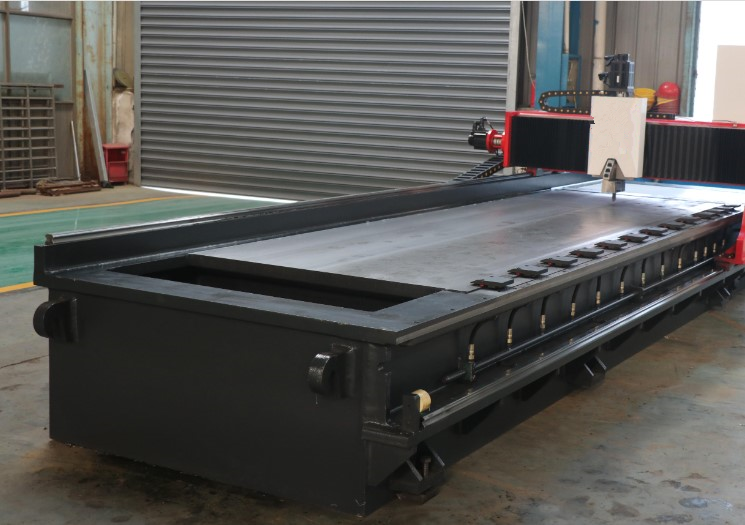

1250x 4000 Gantry V CNC Grooving Machine

Description

1250x 4000 Gantry V CNC Grooving Machine

Key Features
Precision Control:
CNC technology allows for precise control over cutting speed, depth, and angle, resulting in consistent and accurate grooves.
Applications
Automotive Industry: Creating grooves for seals, gaskets, and other components.
Aerospace: Producing precision parts that require tight tolerances.
Manufacturing: Used in various applications for assembling parts and components.
Furniture Production: Making slots for joints and fittings in woodworking.
Advantages
High Efficiency: Fast production rates and reduced cycle times.
Repeatability: Consistent results across multiple pieces.
Reduced Waste: Precise cuts lead to less material waste.
Flexibility: Easily adjustable for different designs and materials.
Considerations When Choosing a CNC Grooving Machine
Size and Capacity: Ensure the machine can accommodate the size of the materials you will be working with.
Software Compatibility: Check if the machine is compatible with your design software.
Maintenance and Support: Consider the availability of parts and technical support.
Budget: Evaluate both initial purchase costs and ongoing operational expenses.

CNC Grooving Machine		SKJ-1250×3200	SKJ-1250×4000	SKJ-1500×3200	SKJ-1500×4000
Max Grooving Width	mm	1250	1250	1500	1500
Max Grooving Length	mm	3200	4000	3200	4000
Grooving Thickness	mm	0.4-6	0.4-6	0.4-6	0.4-6
Grooving Speed	m/min	5-70	5-70	5-70	5-70
X axis Min Settiing Value	mm	0.01	0.01	0.01	0.01
X axis Positioning Accuracy	mm	±0.05	±0.05	±0.05	±0.05
Y axis Min Settiing Value	mm	0.01	0.01	0.01	0.01
Y axis Positioning Accuracy	mm	±0.05	±0.05	±0.05	±0.05
Z axis Min Settiing Value	mm	0.01	0.01	0.01	0.01
Z axis Positioning Accuracy	mm	±0.03	±0.03	±0.03	±0.03
Main Motor Power	kw	5.5	5.5	5.5	5.5
Dimensions(L×W×H)	mm	520023001680	600023001680	520026001680	600026001680
Weight	kg	7200	8100	8000	9000
