3 Axis/4 Axis CNC Router with 600x400x65mm Working Area

Enquiry

Description

3 Axis/4 Axis CNC Router with 600x400x65mm Working Area

Brief

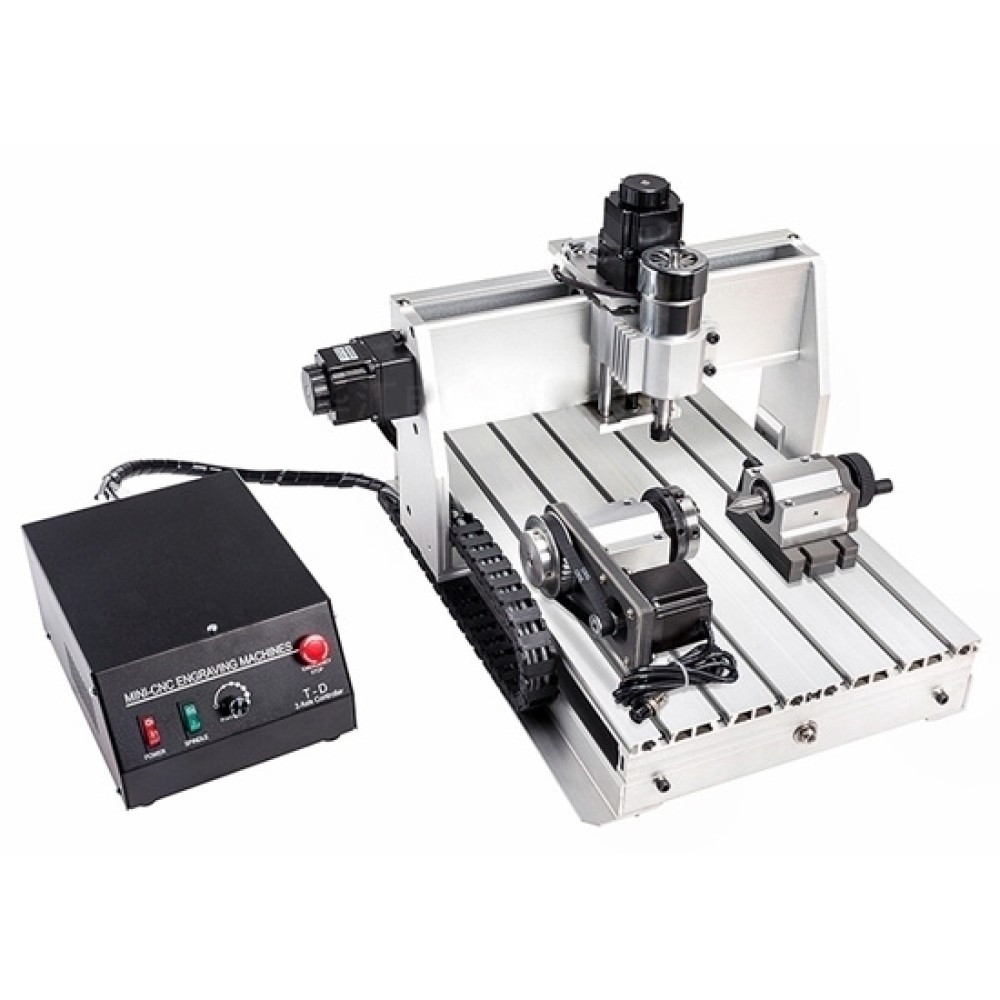

3 axis or 4 axis CNC Router engraving machine combine with a control box to use, supports CNCUSB control software, its working area could be 600x400x65mm. Core components assembled, making it much easier to install. The new 0.8KW water-cooled VFD spindle is available operating for long time, which can reinforced the processing ability of the machine and can be used to process aluminum alloy and hard wood.

Description

Features

  • CNC router tool with 3 axis/ 4 axis version, easy operation and installation
  • More steady and strong equiped with aluminum alloy frame materials
  • Can be controlled only by desktop computer, not suitable for laptop
  • Mach 3 software is simple and intelligent
  • Flexible coupling can be used for high torque transmission
  • Spindle motor knob is useful for small positioning adjustment, with steady and strong support structure
  • Cover plates reducing pollution for the screws and shafts
  • This machine tool already be equiped new1605 ball screws, anti-blackflash, high precision, long life circle

Application: This high quality CNC router is a USB engraving machine suitable for various material such as wood, plastic, MDF board, PVC, acrylic, composite board plywood. It can be used widely to process or make advertising signs, PCB, nameplates, badges, seals, bronzing plate, aluminium alloy, acryl plates, ABS resin double color plate, PVC foaming board, indentation plates, signs, construction models, instrument panels, wooden products etc..

Specification

Router Machine Parameters
Model SCJ009830 6040T4Z
Machine Type CNC router engraving machine
Operating Voltage AC 110V or AC 220V
Frequency 50Hz/ 60Hz
Number of Motor Axis 3 axis 4 axis (added a rotation axis)
Effective Working Travel 600 (X ) mm x 400 (Y) mm x 65 (Z) mm
Shape Dimension 870 x 670 x 520mm
Max.Workpiece Dimension 750mm x 450mm
Work Table Dimension 750mm x 480mm x 20mm
Carving Deepth 55mm
Frame Materials Aluminum alloy 6063 and 6061
Driving Units X Axis 1605 ball screws
Driving Units Y Axis 1605 ball screws
Driving Units Z Axis 1605 ball screws
Sliding Units X Axis Dia.16mm chrome plate shafts
Sliding Units X Axis Dia.20mm chrome plate shafts
Sliding Units Z Axis Dia.13mm chrome plate shafts
Stepper Motor Type Nema 23, two-phase, 3A
Spindle Motor 800W water cooled type
VFD Power 1.5kW VFD
Principal Axis Collet ER11/3.175 mm
Spindle Speed 24000rpm/min (PWM stepless speed regulation)
Repeat Accuracy 0.05mm
Empty Line Speed 0-4000mm/min (16 subdivided driving down)
Spindle Precision Radial beat acuities 0.03 mm
Control Unit Triaxial one-piece drive + ring variable power + PWM speed
Carving Instructions G code/ TAB files/ NC file/ NCC files
Communication Interface Through parallel or USB connection with computer
Software Environment All
Carving Speed 0-2500mm/min (different materials differ)
Machine Weight 58 kg
Certification CE, ISO
Warranty 2 years
Control Box Parameters
Voltage AC 110V or AC 220V, 50Hz/ 60Hz (We also stock USA, UK, EU, AU plugs)
Control Unit 2.5A stepper motor driver plus adjustable spindle speed controller
Computer Connection On board palrallel port, USB
Command Code G code
Acceptable Software Only CNCUSB
Protection Emergency stop button
Package Included
  • 1x Engraving machine
  • 1x Control box
  • 1x Parallel cable
  • 1x Power cable (with a plug based on your selection)
  • 1x Tool box and tools
  • 3x Axis motors
  • 1x Rotary axis and tailstock (just for the 4 axis type router)
  • 2x Connect wires
  • CNCUSB software and machine manual

Power Plug Selection

3 Axis/4 Axis CNC Router with 600x400x65mm Working Area

Tips: How to select a spindle motor for CNC router machine?

The spindle motor is an important component of the CNC router engraving machine. The quality of the spindle directly affects the processing speed and accuracy of the engraving machine. How to choose a high-quality engraving machine spindle is very important. The main points of the selection of the CNC router engraving machine spindle motor are summarized:

  1. If the pursuit of router engraving machine processing efficiency, processing speed should be fast, and at the same time the amount of cutting and large, such as processing solid wood materials, the need for 3KW above the power of the spindle motor.
  2. Whether the spindle motor of engraving machine adopts high-precision bearing, if not, the performance is that the spindle motor overheats after high-speed rotation for a long time, affecting the service life of the spindle motor.
  3. See the router machine spindle in different speed rotation, especially high-speed rotation, the sound is uniform and harmonious.
  4. See whether the main shaft diameter of the CNC router engraving machine is stressed. The main reference is the ability to cut hard materials at high speed. Some spindles can only be in very low speed under the cutting of hard materials, otherwise the spindle performance will be seriously lost, after a period of time affect the spindle precision, or even appear.

Instruction
