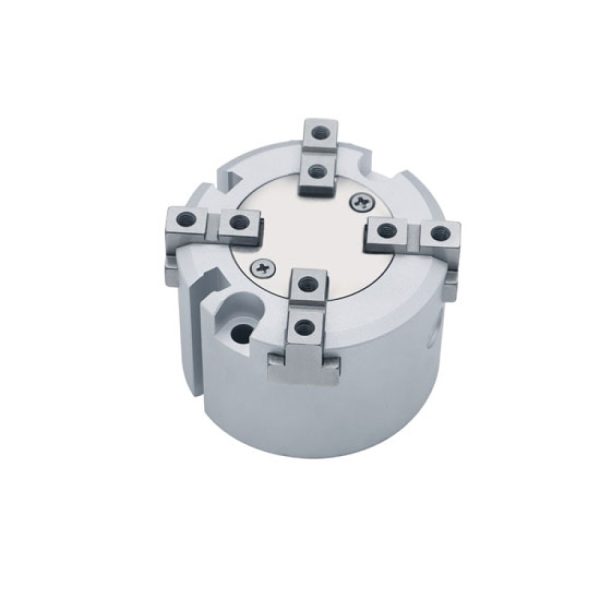

High repeatability 4 jaw gripper cylinder for sale, bore 16mm, stroke 4mm, lightweight and compact design, reduced height, good high load capacity and smooth operation at high speed.

Specification

• Model: SOCOJE-GC-NMHS4
• Bore Size: 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm
• Finger Stroke: 4mm, 4mm, 6mm, 8mm, 8mm, 12mm, 16mm
• Action Mode: Double acting
• Working Pressure Range: 0.2~0.6/0.1~0.6 MPa
• Ambient & Fluid Temperature: -10~+60℃
• Repeat Accuracy: ±0.01mm
• Maximum Usage Frequency: 120/60 c.p.m
• Certificate: CE

Features

• Gripper cylinder claws and lug piston rod are made of SKD11 material, seamless connection ensures repeatability.
• The hard cylinder body is fully oxygen-hardened, keeps improving, and has one-piece structure.
• 4 Finger type gripper cylinder adopts Japan’s Mitsubishi sealing ring to prevent the left and right cavities of the cylinder from deflating. It is wear-resistant and air tightness is improved.
• Four jaw gripper cylinder adopts German Krupp grease, which has excellent anti-wear properties, good high load-bearing capacity, and keeps running smoothly under high-speed operation.

Gripper cylinder detail

Tips: What is a pneumatic finger?

Pneumatic fingers, also known as pneumatic jaws or pneumatic clamping fingers, are actuating devices that use compressed air as power to grip or grasp workpieces. Initially originated in Japan, and later widely used by domestic automation enterprises. According to the style usually can be divided into Y-type clamping finger and flat clamping finger, cylinder diameter is divided into 16mm, 20mm, 25mm, 32mm and 40MM several, its main role is to replace the human gripping work, can effectively improve the production efficiency and work safety.
