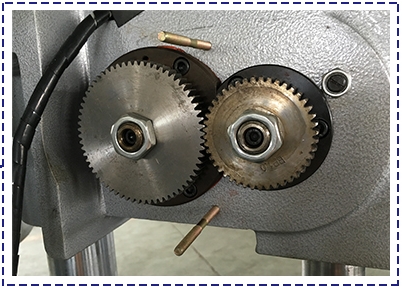

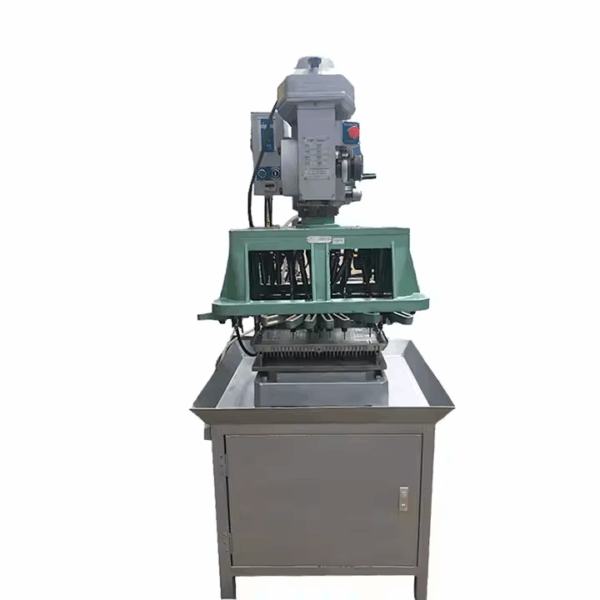

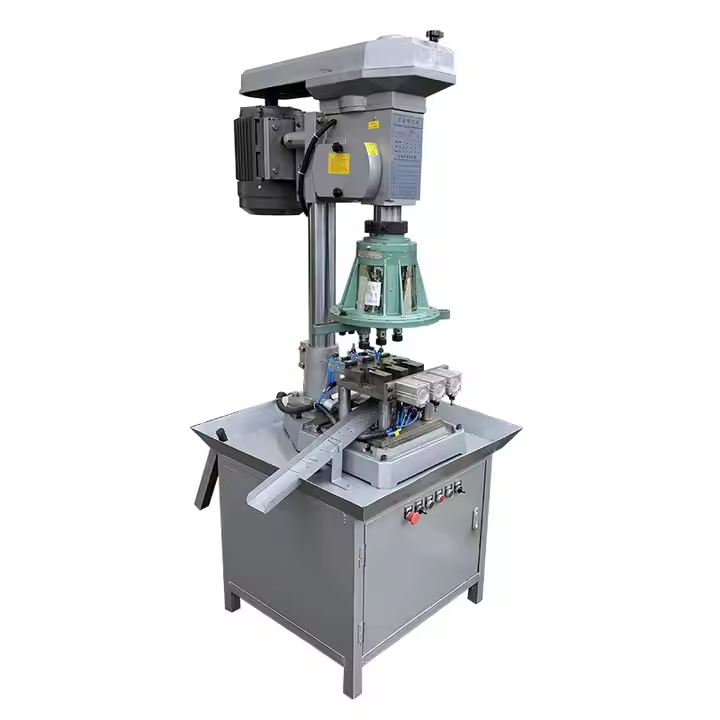

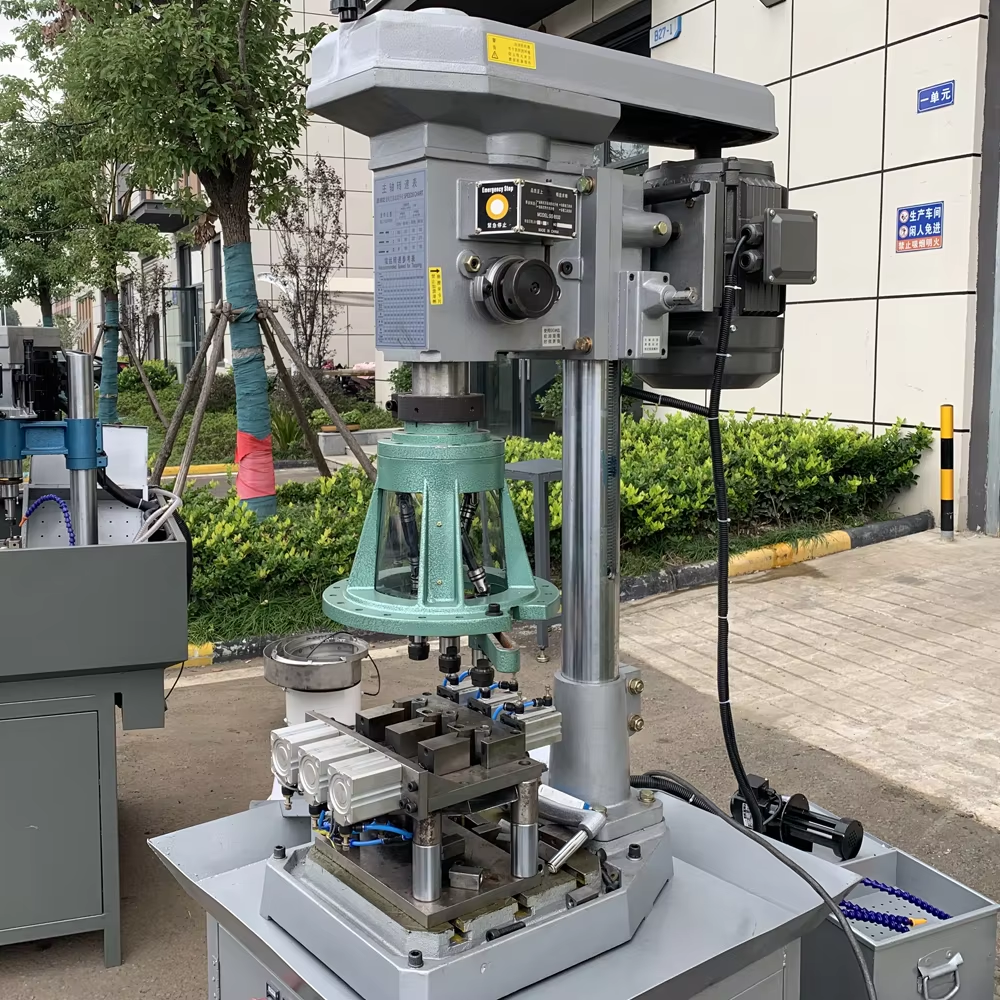

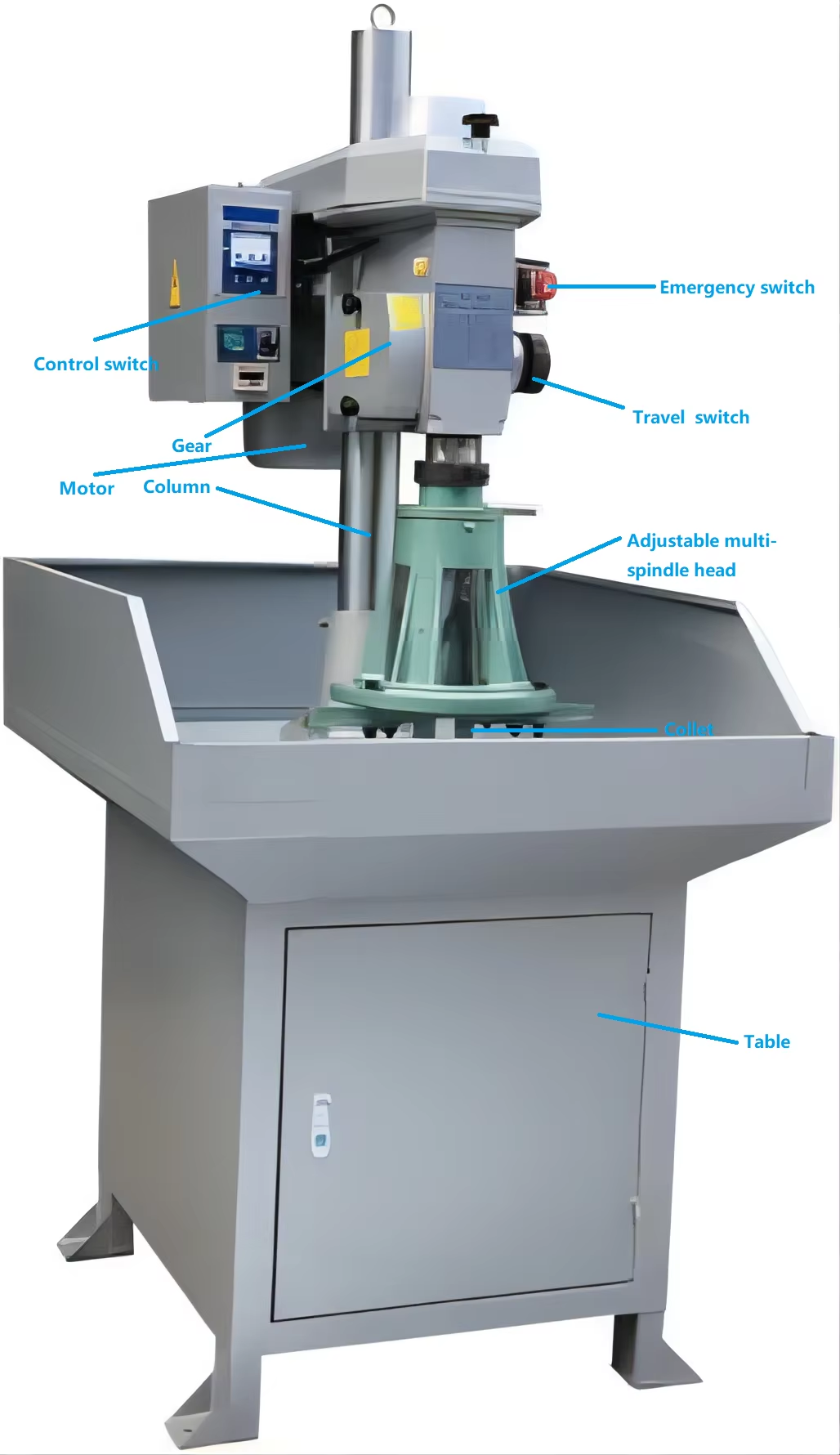

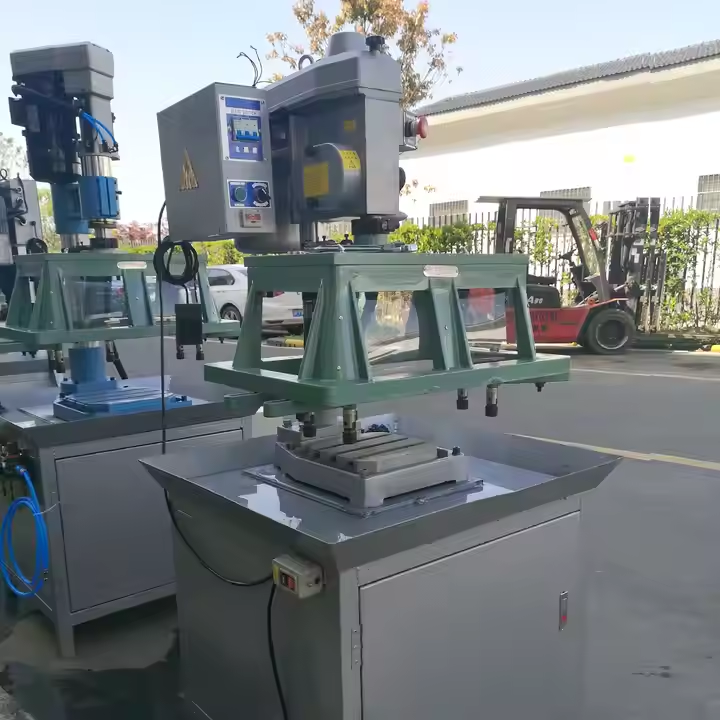

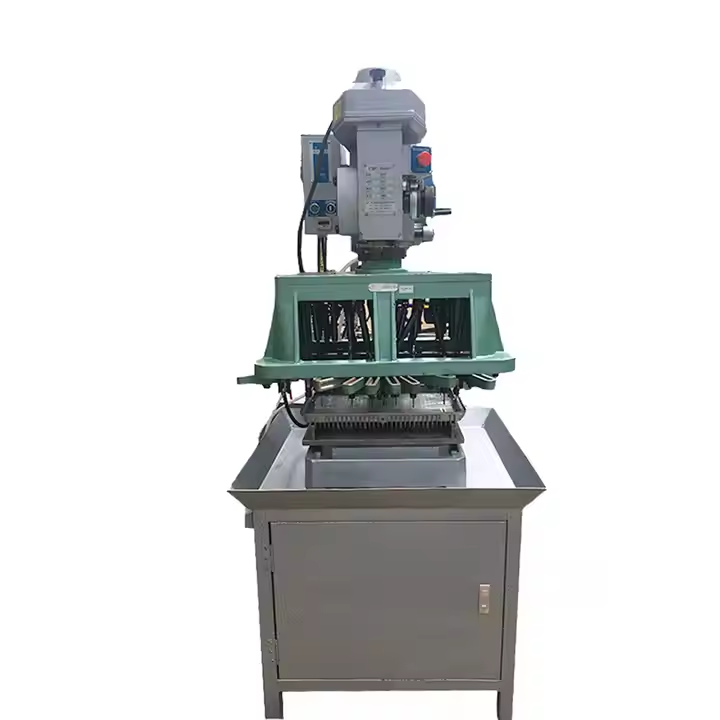

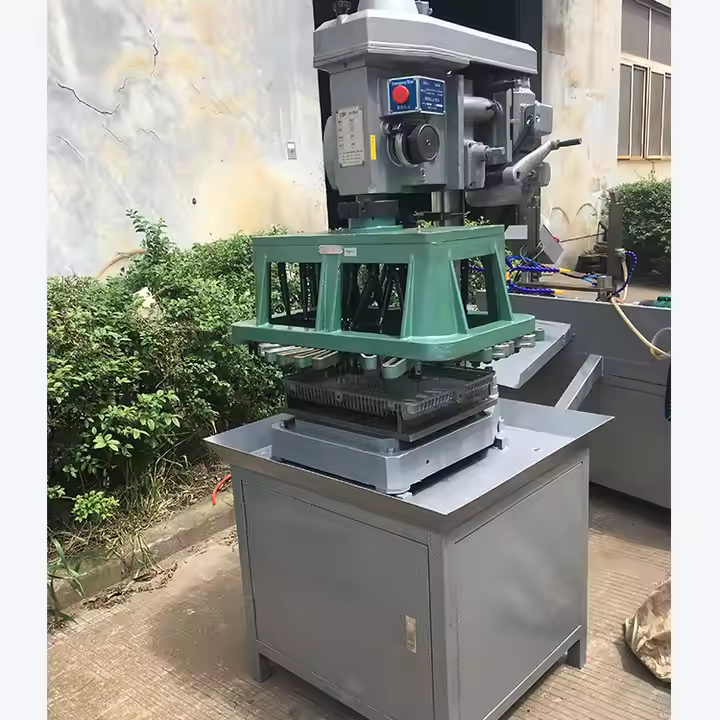

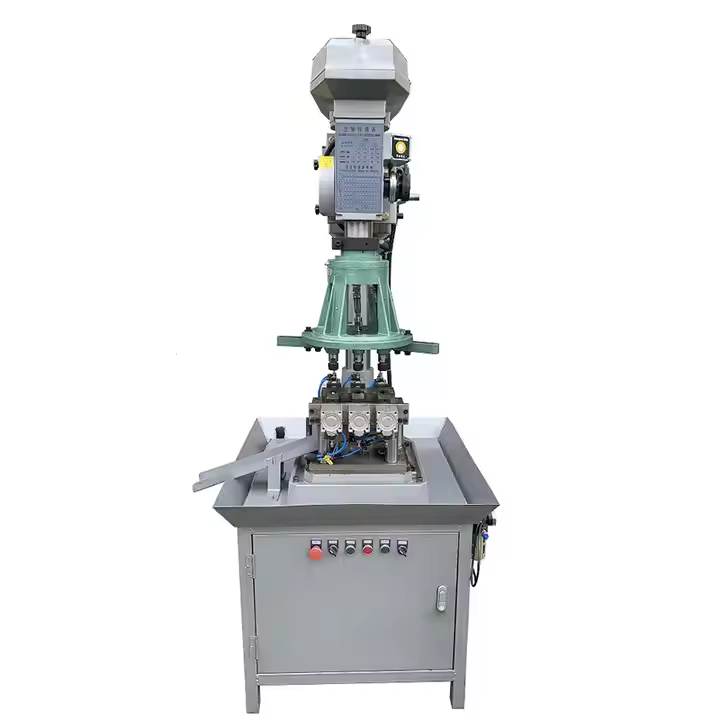

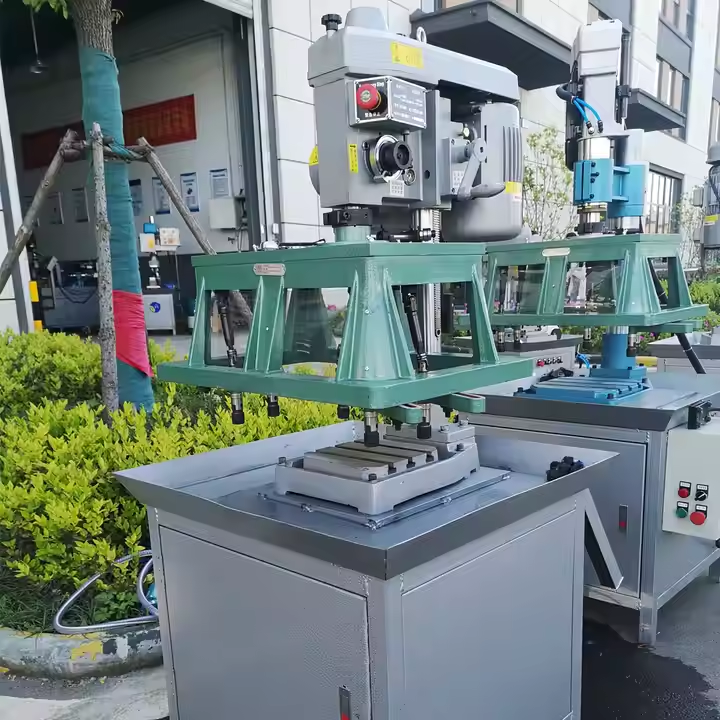

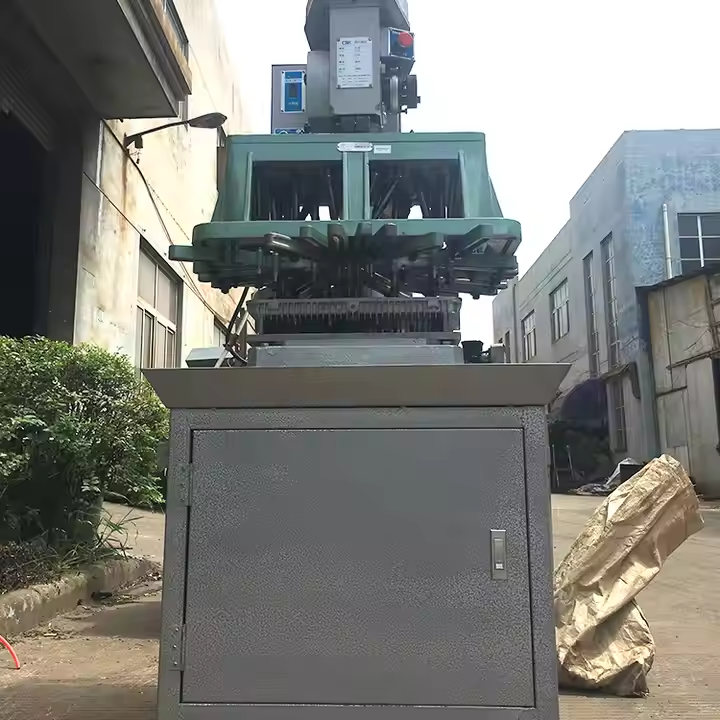

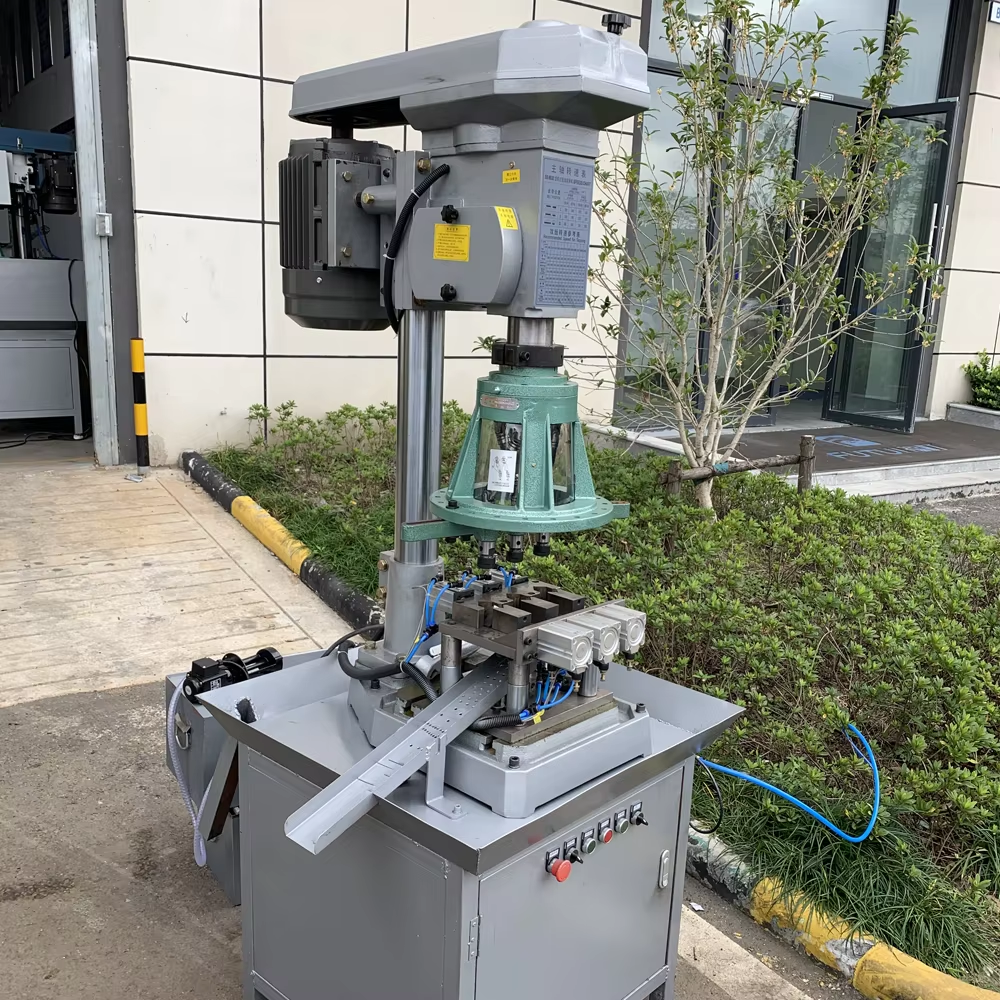

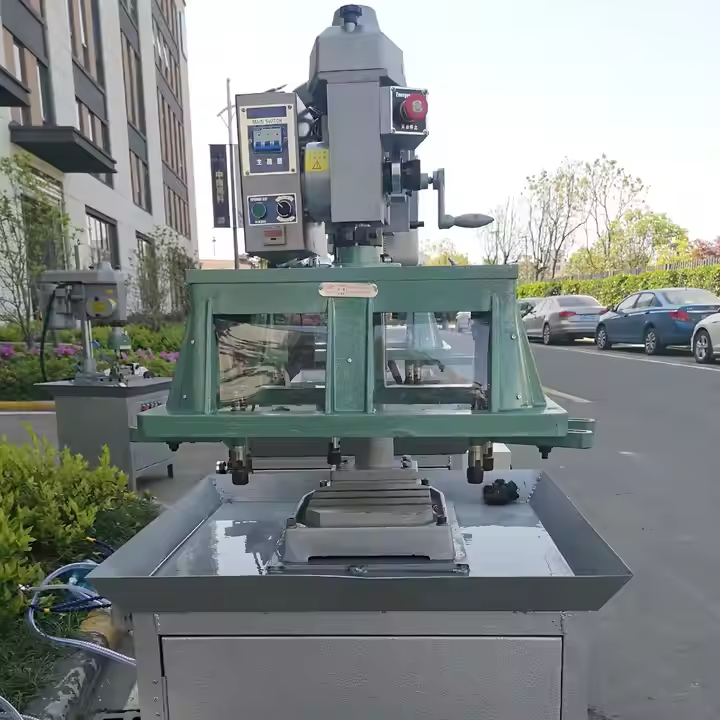

Hot Sale Gear Type Tapping Machine With Good Quality
● Imperial, metric and US wire taps are available
● Various coatings are available
Model | 4508(DK-I) | 6516(DK-II) | 6532(DK-III) |
Tapping capacity | M2-M8 | M5-M16 | M10-M32 |
The spindle taper | B16 | MT2 | MT3 |
Maximum spindle stroke | 45mm | 65mm | 65mm |
Head pitch | 260mm | 300mm | 450mm |
Distance between spindle end and mesa | 350mm | 470mm | 600mm |
Table size | 225* 230mm | 340*340mm | 340*380mm |
The motor | 3H 4P 0.75kw(1HP) | 3H 4P 1.5kw(2HP) | 3H 6P 2.2kw(3HP) |
voltage | 380V | 380V | 380V |
Frequency | 50HZ | 50HZ | 50HZ |

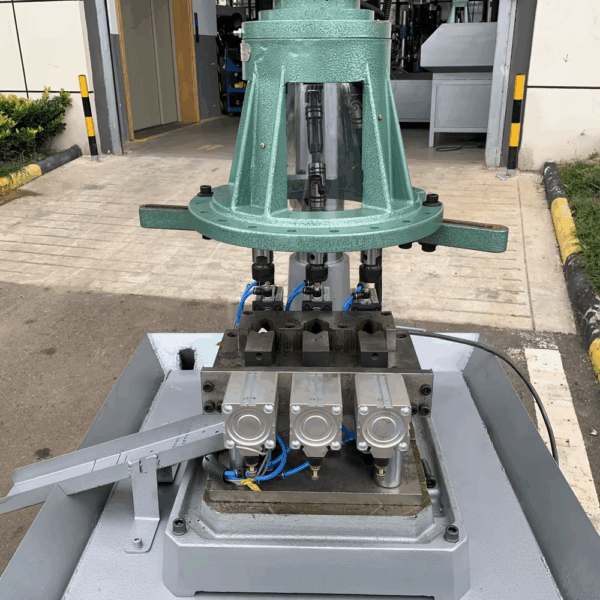

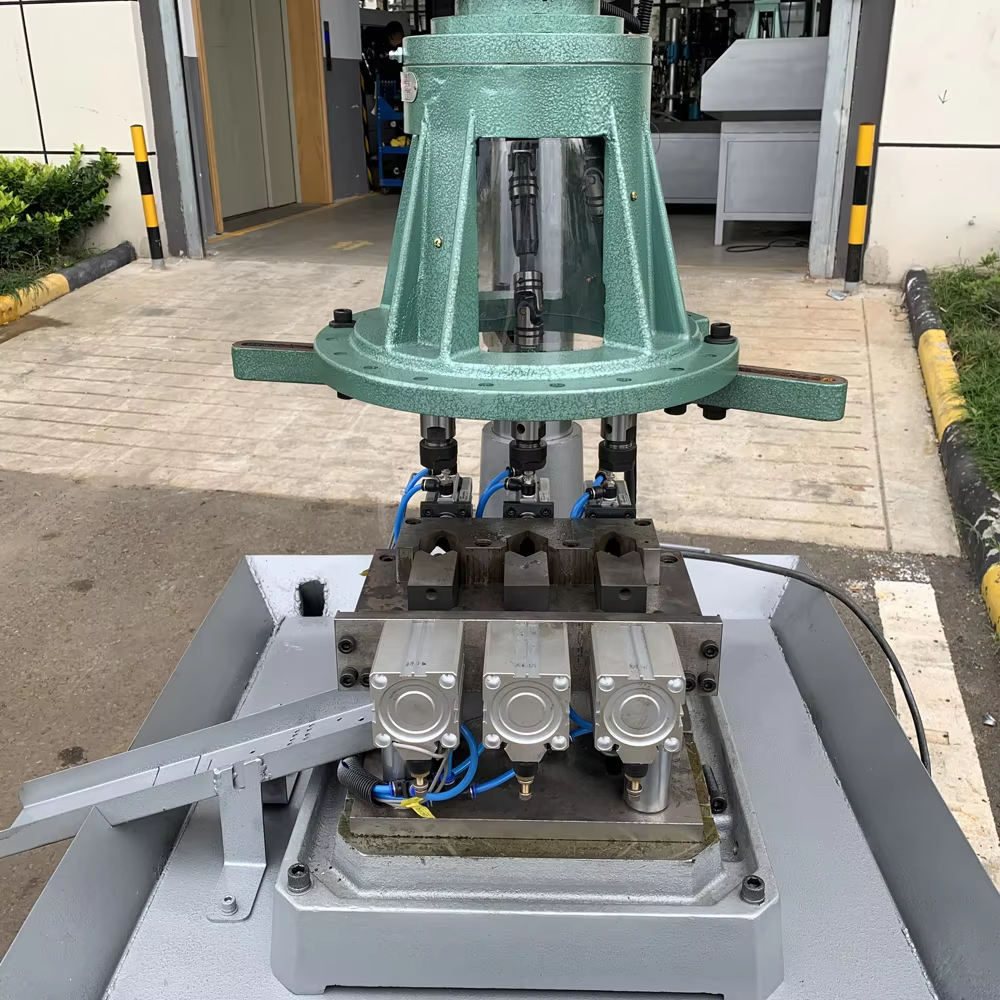

Multi-axis maximum capacity | M3*10axisxa0 M4*5axis | M6*8axisxa0 M8*4axisxa0 M12*2axis | M10*10axisxa0 M16*4axisxa0 M20*2axis |
Weight | 150Kg/100Kg | 200kg/150kg | 300kg/250kg |
volume | 460*630*1060mm | 480*930*1150mm | 920*850*1200mm |
