Milling cutters are indispensable tools in the world of machining, playing a pivotal role in shaping and fabricating materials with precision. Whether in manufacturing, automotive, aerospace, or prototyping, these cutting tools are engineered to remove material efficiently while achieving the desired geometries. This blog dives into the fundamentals of milling cutters, their types, applications, and tips for optimal use.
What is a Milling Cutter?
A milling cutter is a rotary cutting tool with multiple teeth used in milling machines or machining centers. It removes material by advancing (or feeding) into a workpiece, creating slots, grooves, contours, and complex 3D shapes. The cutter’s design, material, and geometry determine its performance in terms of speed, precision, and surface finish.
Common Types of Milling Cutters

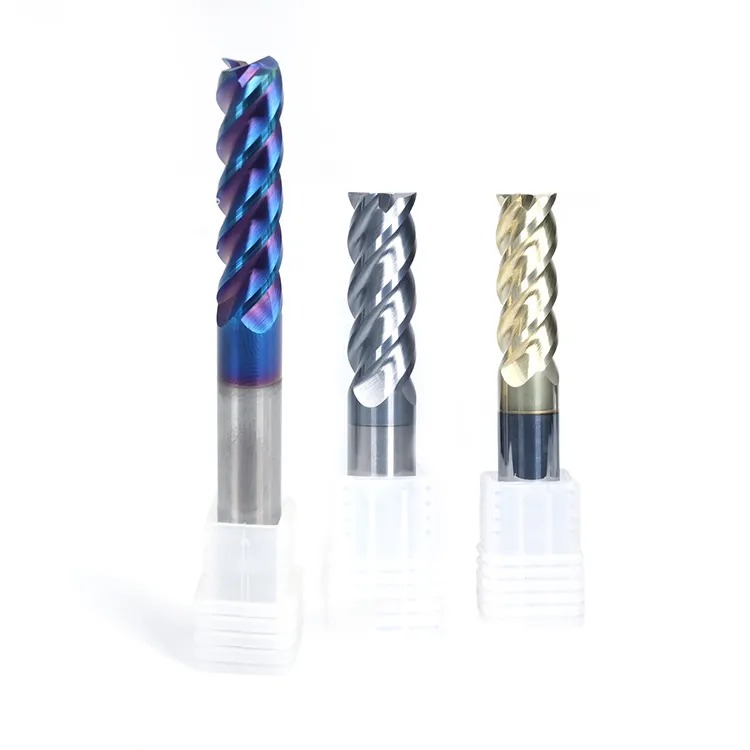

- End Mills
- Description: Versatile tools with cutting edges on the end and sides.
- Uses: Slotting, profiling, and plunging into materials.
- Variants: Ball-nose (for 3D contours), flat-end (for sharp edges), and corner-radius end mills (for durability).
- Face Mills
- Description: Large-diameter cutters with replaceable carbide inserts.
- Uses: Machining flat surfaces (facing operations) efficiently.
- Slot Drills (Slot Mills)
- Description: It is designed to cut narrow slots or keyways.
- Uses: Precision slotting in metals, plastics, and composites.
- Shell Mills
- Description: Modular cutters mounted on an arbor.
- Uses: Heavy-duty material removal in large-scale milling.
- Form Cutters
- Description: Custom-shaped teeth for specialized profiles (e.g., gears, dovetails).
- Uses: Creating complex geometries in a single pass.
- Fly Cutters
- Description: Single-point tools for fine finishing.
- Uses: Achieving ultra-smooth surface finishes on softer materials.
Materials Matter: Choosing the Right Cutter
Milling cutters are made from materials that balance hardness, heat resistance, and durability:
- High-Speed Steel (HSS): Affordable and tough, ideal for low-speed machining of softer materials.
- Carbide (Tungsten Carbide): Harder and heat-resistant, it is perfect for the high-speed machining of metals.
- Ceramic/CBN (Cubic Boron Nitride): Used for ultra-hard materials like hardened steel or cast iron.
- Diamond-Coated: For non-ferrous materials (e.g., aluminum, composites) requiring a mirror finish.
Key Applications of Milling Cutters
- Aerospace: Machining turbine blades, structural components, and lightweight alloys.
- Automotive: Producing engine parts, molds, and transmission components.
- Medical Devices: Crafting precision implants and surgical tools.
- Woodworking/Metalworking: Creating decorative patterns, functional parts, and prototypes.
Selecting the Right Milling Cutter: 4 Factors
- Workpiece Material: Match the cutter material to the hardness and abrasiveness of the workpiece.
- Operation Type: Roughing vs. finishing? Opt for variable helix end mills to reduce vibration.
- Machine Compatibility: Ensure spindle speed and rigidity align with the cutter’s requirements.
- Cost vs. Performance: Carbide cutters cost more but last longer in demanding applications.
Best Practices for Milling Cutter Longevity
- Optimize Cutting Parameters: Adjust speed (RPM), feed rate, and depth of cut to avoid tool wear.
- Use Coolant Wisely: Reduce heat buildup in metals; consider dry machining for non-ferrous materials.
- Inspect and Maintain: Regularly check for chipped teeth, dull edges, or coating damage.
- Secure Workholding: Minimize vibration to prevent tool deflection and poor surface finishes.
The Future of Milling Cutters
Advancements in coatings (e.g., TiAlN, diamond-like carbon) and smart tooling (sensors for real-time monitoring) are pushing the boundaries of milling efficiency. Hybrid tools combining additive manufacturing and subtractive machining also promise new possibilities.
Conclusion
Milling cutters are the backbone of modern machining, enabling innovation across industries. By understanding their types, materials, and best practices, machinists can maximize productivity, reduce waste, and achieve superior results. Next time you witness a perfectly machined component, remember the unsung hero behind it: the milling cutter.
